IRP628XG-24GP4XGF

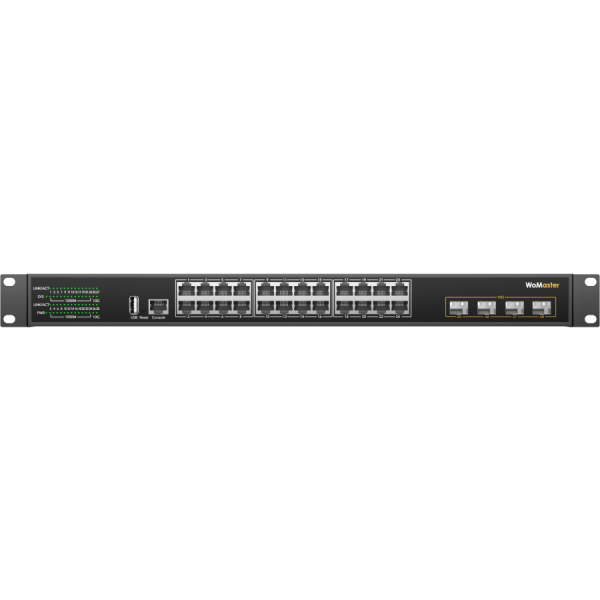

  1.  24 Ports Giga PoE and 4X10G SFP+ Rackmount Switch

The IRP628XG-24GP4XGF is a high-performance 10G Layer 2+ rackmount PoE switch, ideal for IP surveillance, enterprise networks, and smart city applications. It features 24 Gigabit PoE+ ports, each delivering up to 30W, and four 10G fiber SFP ports for high-speed data transmission. With Layer 2+ IP routing, Surveillance VLAN, and LLDP-MED, it optimizes video traffic and device management. Its PoE+ capability ensures reliable power delivery to IP cameras, access points, and IoT devices, making it perfect for large-scale security and automation networks. Built for reliability, it supports ERPS, RSTP, and MSTP for network redundancy and includes advanced cybersecurity features like DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection.
Related Downloads Inquiry cart

High Throughput Ethernet Switching Capacity

・28-port  with 24-port GbE RJ45, and 4-Port 10G Base-R(SFP/SFP+) fiber ports.
・Up to 24 GbE IEEE 802.3at/af compliant PoE+ ports, 15.4W simultaneously on 24 ports or 30W simultaneously on 12 ports

・Powerful 800MHz MIPS-34Kc processor

・Energy-Efficient Ethernet for power saving

・Non-blocking switch fabric design

・8 flexible Class of Service(CoS) queues, 1K

   Multicast Groups for video applications

・16K MAC address table, 10KB Jumbo Frame
・PoE management including per-port PoE Status, PoE Scheduling


Cyber Security

・MAC/IPv4/IPv6 Access Control List (ACL)

・DHCP Snooping, IP Source Guard, Dynamic ARP Inspection

・802.1Q VLAN, Port Security

・ Multi-Level user passwords

・ TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH

    to enhance network security

・ 802.1X MAB for non-802.1X compliant end devices

・ RADIUS/TACACS+ centralized password authentication

Layer 2+ Switch and Router

・Layer 2+ IP Routing includes, Static Route and Dynamic Routing protocols, RIP, OSPF, and VRRP


ITU-T G.8032 v2 ERPS Ring Redundancy
•ITU-T G.8032 v1/v2 ERPS Standard Ring Redundancy protocol

•Less than 50ms recovery time, seamless restoration time
•Inter-Operability with 3rd party industrial switch and still remain fast recovery time
•Replace Ring + Chain + Dual Homing

Industrial Grade Management

・Various configuration paths, including WebGUI, CLI,

    SNMP and RMON

・ Command line interface (CLI) for quickly configuring major

    managed functions

・ SNMPv1/v2c/v3 for different levels of network management

・ RMON enables proactive monitoring, real-time insights, and efficiency.

・Surveillance VLAN simplify the deployment of network security monitoring systems by isolating monitoring traffic from data traffic, while improving security and improving network performance.

・ LLDP and LLDP-MED enhance device discovery, automate network configuration, improve interoperability, and support location-based services.

​

Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX Fast Ethernet Fiber
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3z Gigabit Ethernet Fiber
IEEE 802.3x Flow Control and back-pressure
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN and GVRP
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1S Multiple Spanning Tree Protocol (MSTP)
IEEE 801.1AX/802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1x Port based Network Access Protocol
ITU-T G.8032 version 2 Ethernet ring protection switching(ERPSv2)
Performance & Scalability
Switch Technology Store and Forward Technology with 176Gbps Non-Blocking Switch Fabric
Forwarding rate: 95.23Mpps
CPU 800MHz MIPS-34Kc
RAM 2GB
Packet Buffer Memory 12Mbits
Number of MAC Address 16K
Jumbo Frame 10K Bytes
VLAN 4K VLANs
IGMP Groups 1K
Traffic Prioritize 8 Priority Queues per Port
Interface
Ethernet Port 24 x 10/100/1000M RJ45, 24 x 802.3af/at PoE, Auto Negotiation
4 x 10G Base-R (SFP/SFP+), DDM
Energy-Efficient Ethernet for power saving
System LED Ready : Green On
Power LED Red On
Giga Ethernet Port LED Link (Green On), Activity (Green Blinking),  Speed 1000M(Amber On), Speed 10M/100M(Off)
10G SFP Port LED Port: Link (Green On), Activity (Green Blinking)Speed 10G(Amber On), Speed 1000M(Off)
Reset Default Settings Reset(over 7 Seconds)
Console 1 x RJ45 based RS232 for System Configuration. Baud Rate: 115200.n.8.1
Power Requirement
Operating Voltage AC Input: AC 100~240VAC, 50/60Hz
Power Consumption System idle: 12.7W;System full without PoE:40W;PoE full:400W
PoE
Power forwarding mode 802.3at Alternative A
PoE Power Budget Max PoE Power Budget: 360W
15W simultaneously on 24 ports
30W simultaneously on 12 ports
PoE Standard IEEE 802.3at PoE+, IEEE 802.3af PoE
Management PoE Status, PoE Scheduling
Software
Management WebGUI, Command Line Interface (CLI), IPv4/IPv6(RFC2460), Telnet, SNMP v1/v2c/v3, SNMP Trap/Informs, RMON, LLDP, DHCP Server/Client/Option 43/Option 82, TFTP, System Log
Traffic Management Flow Control, Rate Control, Port Mirror, CoS, QoS
Filter IGMP Snooping v1/v2/v3, IGMP Snooping Fast-Leave/Immediate-Leave, MLD Snooping, MVR, IGMP Query,IEEE802.1Q VLAN, QinQ, GVRP, Voice VLAN, Surveillance VLAN
Security IEEE 802.1X/RADIUS, TLS v1, HTTPs/SSH
Advanced Security TACACS+, Mutli-user authentication, IEEE802.1x MAB, DHCP Snooping/IPSG, Dynamic ARP inspection, DoS, Adv. Port security
Redundancy ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPSv2), Loop Protection, Port Trunk/801.1AX/802.3ad LACP,
Rapid Spanning Tree Protocol/Spanning Tree Protocol (RSTP/STP), Multiple Spanning Tree Protocol (MSTP),VRRP
Time Management NTP
Layer 2+ Routing: RIPv2, OSPFv2, Static  Routing  (100 entries)
Mechanical
Installation Rackmount
Enclosure Material Steel Metal
Dimension 440(W) x 44(H) x 280(D)mm
Weight 3KG
Cooling FAN : Forced-Air Cooling
Environmental
Operating Temperature & Humidity -10°C~50°C , 10%~90%RH
Storage Temperature -40°C~75°C, 5%~90%RH
MTBF 100,000 hours
Warranty 1 year
EMC&INGRESS PROTECTION
Surge Power：Common mode：4KV;Differential-Mod：2KV
Ethernet Port：Common mode：4KV;Differential-Mod：2KV
ESD Contact:8KV；Air:15KV
Free Fall 0.5m
Ordering Information
Model Name Description
IRP628XG-24GP4XGF-E/U/UK Rackmount L2+ PoE+ Switch with 24 Ports 802.3at PoE+ and 4 Ports 1G/10G SFP+, AC100~240V input
  Package List
1 x Product Unit (Without SFP Transceiver)
1 x Power Cord EU or US or UK
1 x Quick Installation Guide

Optional Accessory
Item
SFPGEM05DT 1000M 550M Multi SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C
SFPGES10DT 1000M 10KM Single SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C
SFPGES30DT 1000M 30KM Single SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C
SFPXGM03D 10G 300M Multi　 SFP+, 10Gbps, LC, multi-mode, DDM, 300M, 0~70°C
SFPXGM03DT 10G 300M Multi SFP+, 10Gbps, LC, multi-mode, DDM, 300M, -40~85°C
SFPXGS10D 10G 10KM Single　 SFP+, 10Gbps, LC, single-mode, DDM, 10KM, 0~70°C
SFPXGS10DT 10G 10KM Single SFP+, 10Gbps, LC, single-mode, DDM, 10KM,  -40~85°C
